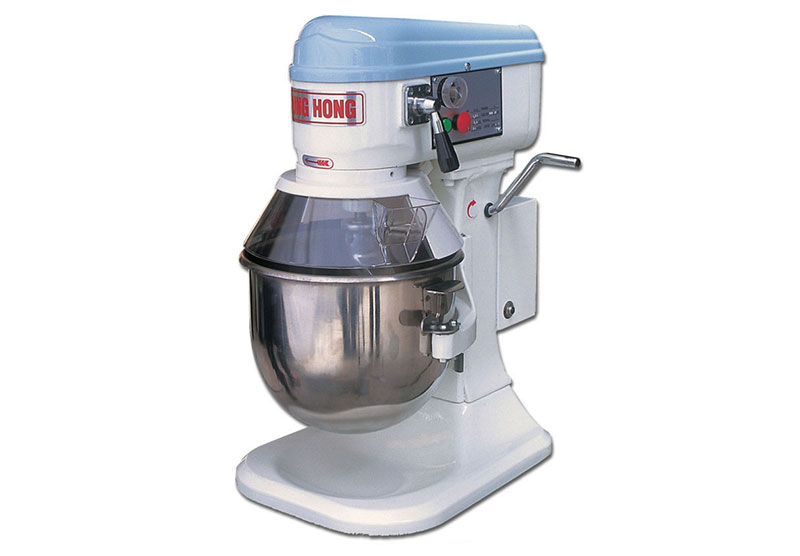

10 Liter Bench Top Planetary Mixer (Taiwan Made)
»Specifications
| Model Number | AV-01 |
| Bowl Capacity | 10.6 Qt. (10 Liter) |
| Flour Capacity | 2.2 lbs (1 kg) |
| Dough Capacity | 3.5 lbs (1.6 kg) |
| Transmission Type | Belt Driven |
| Speeds | 3 mixing speeds |
| Agitator Speeds | 150 / 280 / 635 RPM |
| Motor Power | 1/3 HP |
| Voltage | Single phase for 110V |
| N.W. / G.W. | 84 lbs (38 kg) / 117 lbs (53 kg) |
| Dimension | 17” x 12” x 23” (430 x 310 x 580 mm) |
| Accessory |
1 x Stainless Steel Bowl 1 x Alum. Alloy Dough Hook 1 x Alum. Alloy Flat Beater/Paddle 1 x Stainless Steel Wire Whip 1 x Universal #12 Hub attachment 1 x S/S Security Guard (Optional) |
| Certification |
NSF,ETL Approval |
| Country of Origin |
100% made in Taiwan |
Instruction
Dough mixing - https://youtu.be/Buvj8R37iGs
»Other models conveyor belt are as follows:
| Model No. | Bowl Capacity | Power | Weight |
| SH-08 | 8 Liter | 0.33 HP | 34 Kg |
| AS-10 | 10 Liter | 0.33 HP | 38 Kg |
| AV-01 | 10 Liter | 0.33 HP | 38 Kg |
| SH-10 | 10 Liter | 0.33 HP | 65 Kg |
| AS-20 | 20 Liter | 0.5 HP | 86 Kg |
| AV-02 | 20 Liter | 0.5 HP | 90 Kg |
| HUB-20 | 20 Liter | 0.75 HP | 93 Kg |
| SH-20 | 20 Liter | 0.5 HP | 90 Kg |
| AS-30 | 30 Liter | 1 HP | 134 Kg |
| HUB-30 | 30 Liter | 1 HP | 185 Kg |
| SH-30 | 30 Liter | 1 HP | 160 Kg |
| AS-40 | 40 Liter | 1.5 HP | 149 Kg |
| HUB-40 | 40 Liter | 1.5 HP | 210 Kg |
| AS-50 | 50 Liter | 2 HP | 181 Kg |
| HUB-50 | 50 Liter | 2 HP | 210 Kg |
| SH-303 | 60 Liter | 3 HP | 330 Kg |
| V-60 | 60 Liter | 3 HP | 368 Kg |
| HD-60 | 80 Liter | 3 HP | 397 Kg |
| SH-606 | 80 Liter | 3.25 HP | 385 Kg |
| V-80 | 80 Liter | 4 HP | 400 Kg |
| M-140W | 140 Liter | 6.5 HP | 1,000 Kg |
»Why Choose Us?
»Our Advantage
»Product Flow
»If you are a User / Dealer , you should know:
|
|
Machines your customers might need |
||
A |
40L Planetary Mixer |
Dough Divider
|

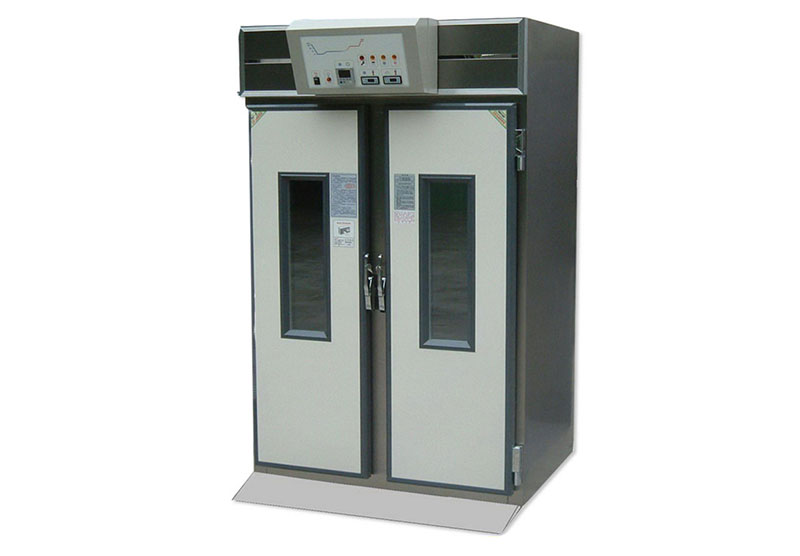

18 trays Dough Proofer
|
B |
60L Planetary Mixer
|
Dough Divider
|
36 trays Dough Proofer
|
C |
140L Planetary Mixer
|

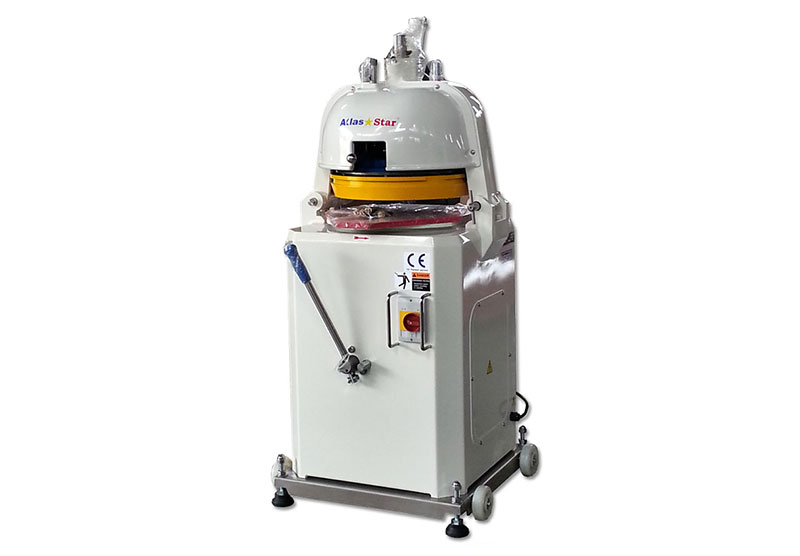

Semi-automatic Dough Divider Rounder |
Bread Moulder |
D |
200L Planetary Mixer
|

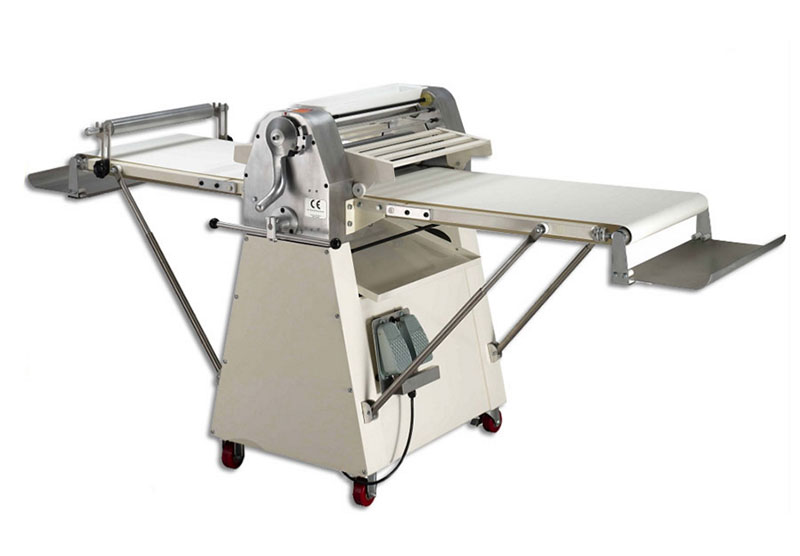

Fully Automatic Dough Divider Rounder Pastry Sheeter |
