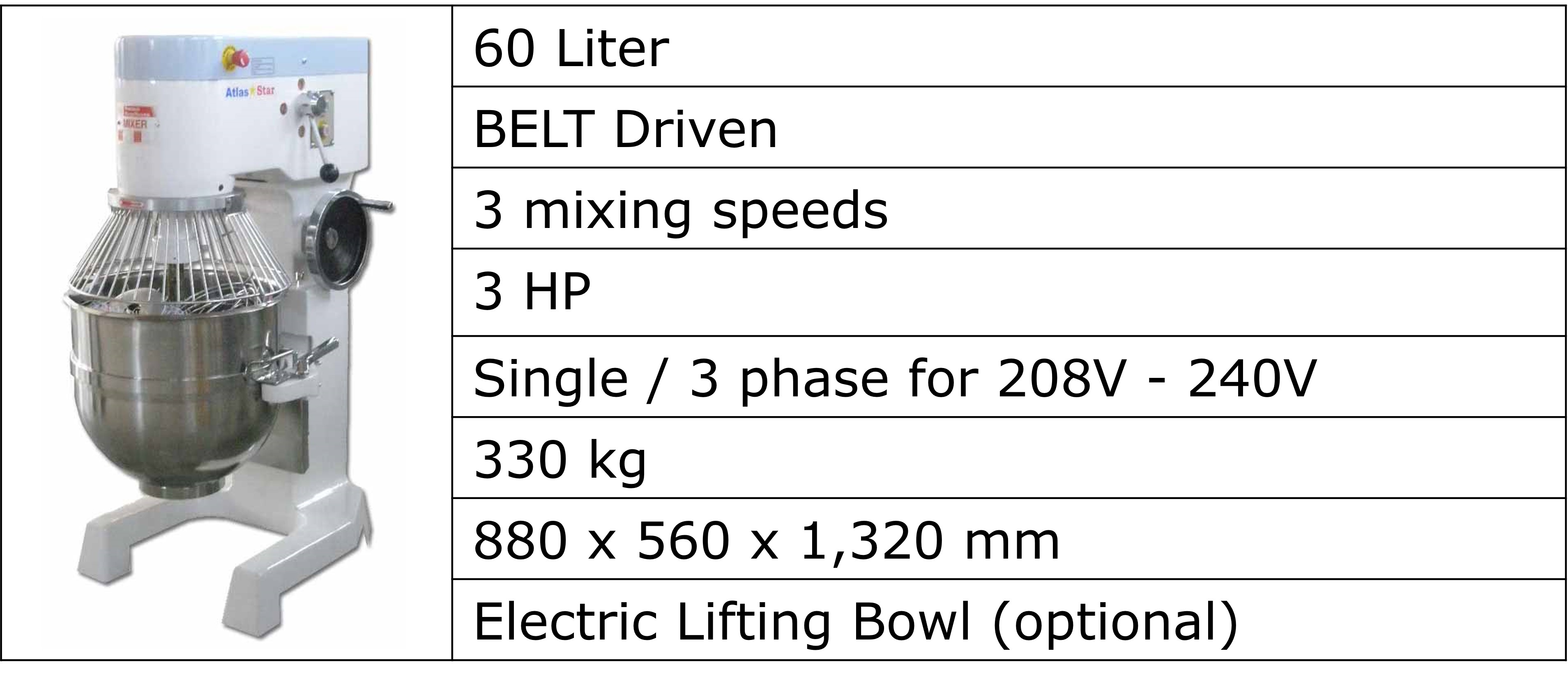

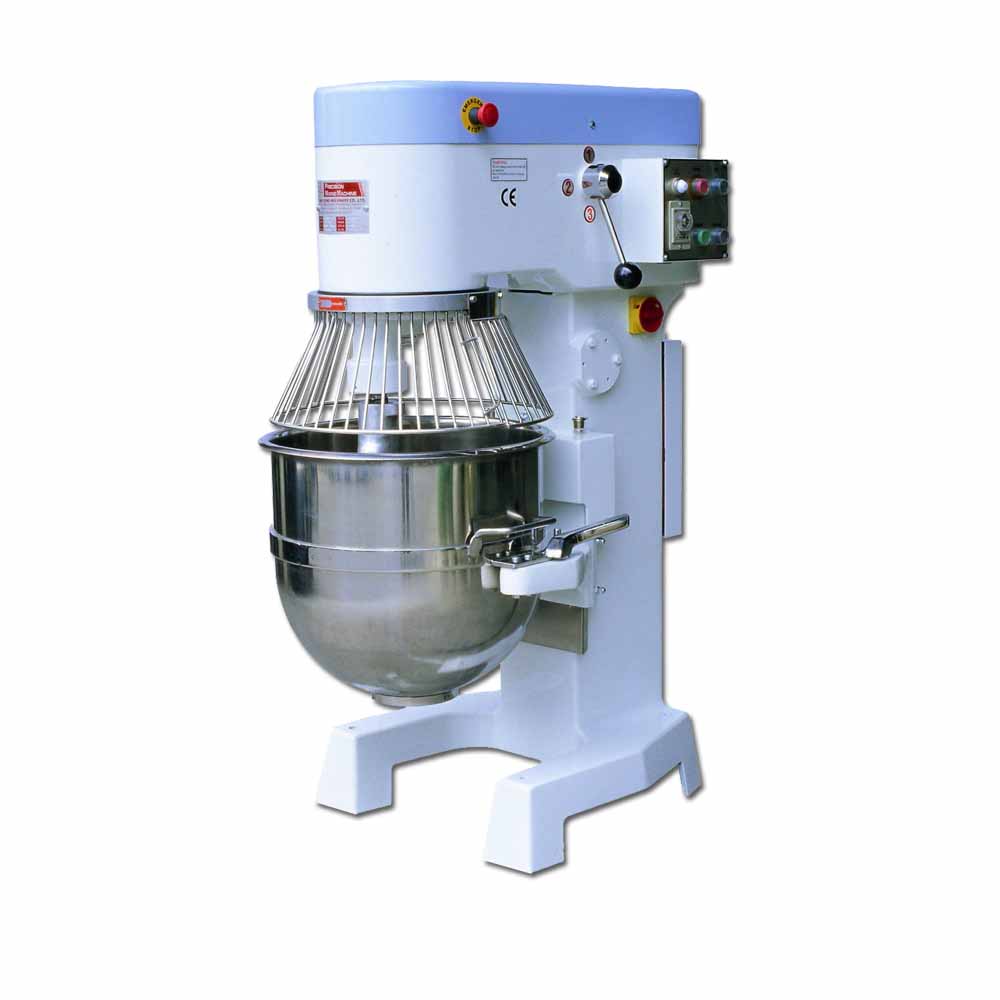

60 Liter Dough Planetary Mixer/Kneader (Taiwan Made)
Specifications
|
Bowl Capacity |
63.4 Qt (60 Liter) |
|
Flour Capacity |
48.5 lbs (22 kg) |
|
Dough Capacity |
80 lbs (36 kg) |
|
Transmission type |
BELT Driven |
|
Speeds |
3 mixing speeds |
|
Timer |
30 minutes Timer with auto shut-off |
|
Agitator Speeds |
104 / 197 / 331 RPM |
|
Motor Power |
3 HP |
|
Voltage |
Single phase / 3 phase for 208~240V |
|
N.W. / G.W. |
728 lbs (330 kg) / 882 lbs (400 kg) |
|
Dimension |
35” x 22” x 52” (880 x 560 x 1,320 mm) |
|
Accessory |
1 x Stainless Steel Bowl 1 x Alum. Alloy Dough Hook 1 x Alum. Alloy Flat Beater/Paddle 1 x Stainless Steel Wire Whip 1 x S/S Security Guard (optional) Electric Lifting Bowl (optional) 40 Qt reducer kits (optional) |
|
Country of Origin |
100% made in Taiwan |
Features
- 40 Qt reducer kits for bowl, hook, beater, and wire whip.
- 1/3 HP lifting motor with gear reduction.

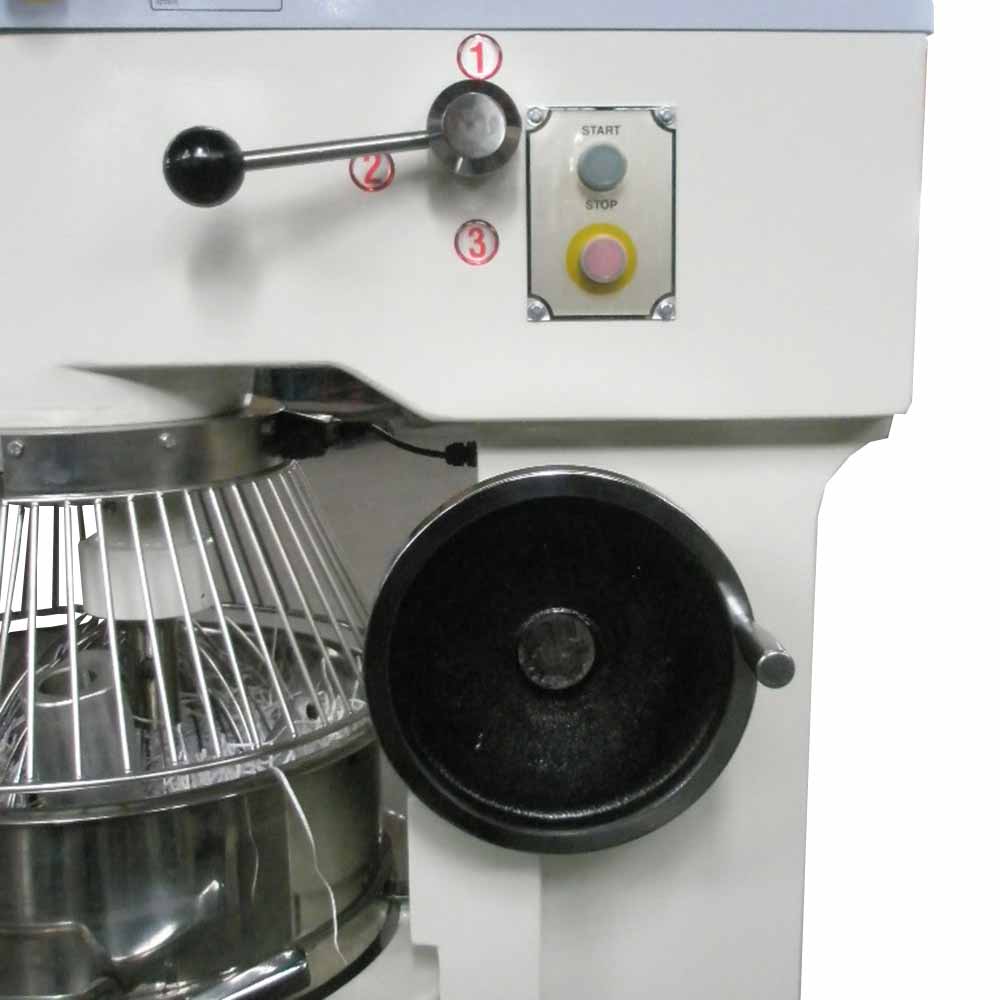

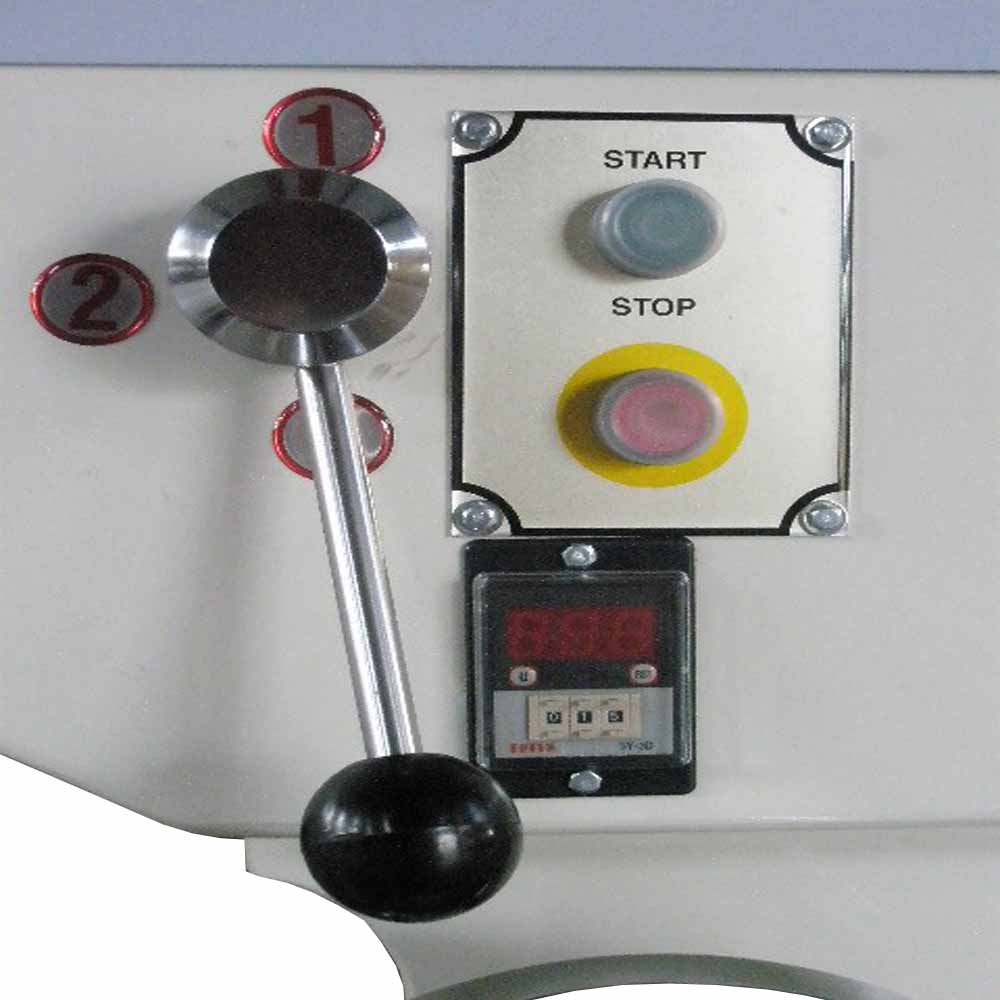

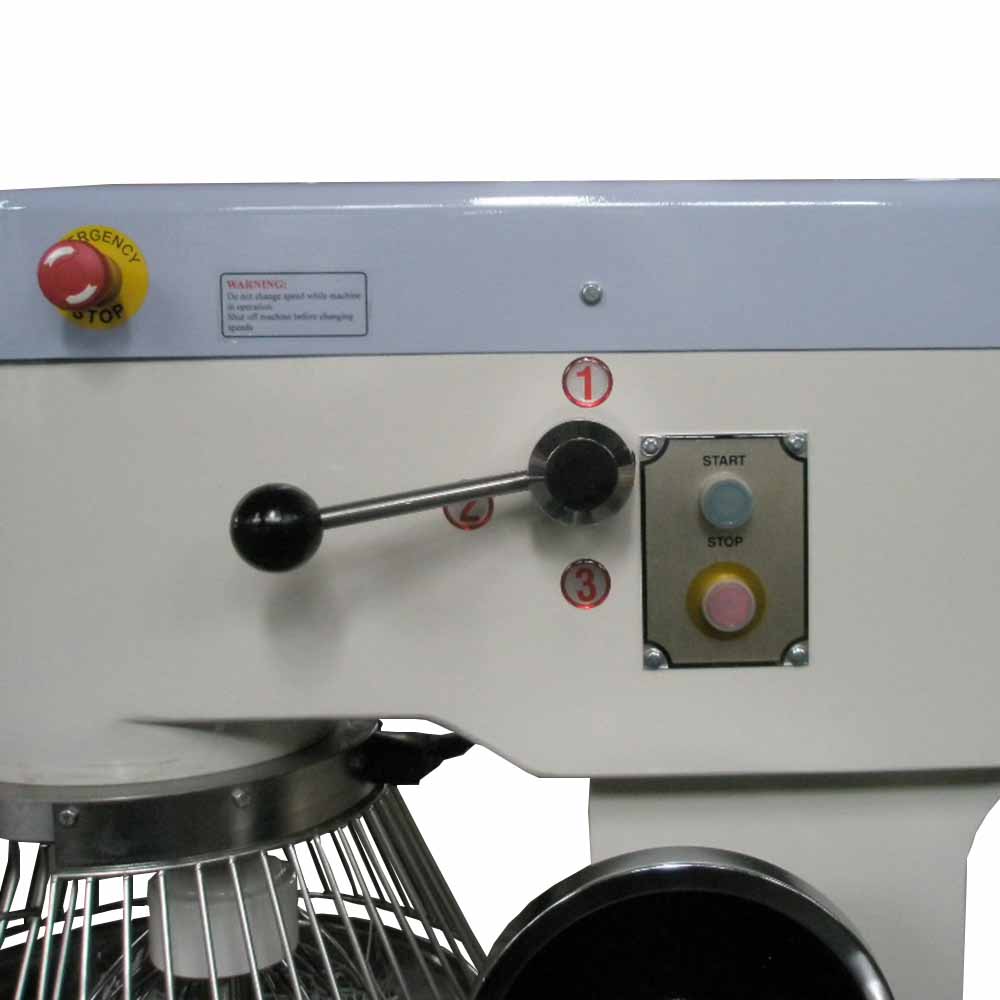

- Shift speed must be stop the mixer first.
- Motor thermal overload protection.
- All metal and die-cast aluminum body.
- Transmission is made of harden alloy steel gears.
- All shafts are mounted in ball bearings.
- Interlocking mechanism prevents mixing until guard is fully closed.
- Precision-milled, heat-treated steel alloy gear for durability.
- High polish stainless steel meets food industry sanitation needs.
Instruction
Dough mixing - https://youtu.be/Buvj8R37iGs
»Other models conveyor belt are as follows:
| Model No. | Bowl Capacity | Power | Weight |
| SH-08 | 8 Liter | 0.33 HP | 34 Kg |
| AS-10 | 10 Liter | 0.33 HP | 38 Kg |
| AV-01 | 10 Liter | 0.33 HP | 38 Kg |
| SH-10 | 10 Liter | 0.33 HP | 65 Kg |
| AS-20 | 20 Liter | 0.5 HP | 86 Kg |
| AV-02 | 20 Liter | 0.5 HP | 90 Kg |
| HUB-20 | 20 Liter | 0.75 HP | 93 Kg |
| SH-20 | 20 Liter | 0.5 HP | 90 Kg |
| AS-30 | 30 Liter | 1 HP | 134 Kg |
| HUB-30 | 30 Liter | 1 HP | 185 Kg |
| SH-30 | 30 Liter | 1 HP | 160 Kg |
| AS-40 | 40 Liter | 1.5 HP | 149 Kg |
| HUB-40 | 40 Liter | 1.5 HP | 210 Kg |
| AS-50 | 50 Liter | 2 HP | 181 Kg |
| HUB-50 | 50 Liter | 2 HP | 210 Kg |
| SH-303 | 60 Liter | 3 HP | 330 Kg |
| V-60 | 60 Liter | 3 HP | 368 Kg |
| HD-60 | 80 Liter | 3 HP | 397 Kg |
| SH-606 | 80 Liter | 3.25 HP | 385 Kg |
| V-80 | 80 Liter | 4 HP | 400 Kg |
| M-140W | 140 Liter | 6.5 HP | 1,000 Kg |
Company Information
ATLAS STAR engaged in manufacturing an exhaustive range of Bakery Pizza Machines. Catering to the variegated requirements of the baking industry, our professional baking equipment and complete lines for the production of bakery and confectionery products.
Our bakery and pizza machines are offered in several models and configurations and can be custom-designed to meet the specific requirements of our clients.
Atlas Star OEM Production
A giant step for bakery machine
As a professional OEM in bakery machine, we improve the most important aspects of the machine experience.
Our Certificates
Q & A
1. Dough hook material? Ans: Aluminum alloy
2. Whip material? Ans: Stainless Steel
3. Flat Beater/Paddle material? Ans: Aluminum alloy
4. Stir bowl material? Ans: All stainless steel.
5. Machine material? Ans: Cast iron.
6. Voltage? Ans: Single phase for 110V-240V.
7. Safety gear? Ans: Safety guard on the stainless steel bowl, Micro switch of safety guard, Micro switch for lifting and declining the stainless steel bowl, ON/OFF push buttons, Motor thermal overload protection, and buttons which comply with Electrical safety standards.
8. Warranty period? Ans: 1 year for all the machine components for the breakdown of the normal use of contract equipment (non-human factor damage).
9. Certificates? Ans: ETL & NSF model is available.
10. Color customize? Ans: Standard colors are white and silver. We also provide customization service.
11. Lead time? Ans: 15-20 days after order confirmation and payment receipt, it depends on our further notice.
12. Payment term? Ans: (T/T), Paypal, Western Union, Moneygram, Alipay, etc.
