Specifications
Feature
-
All shafts are mounted in ball bearings.
-

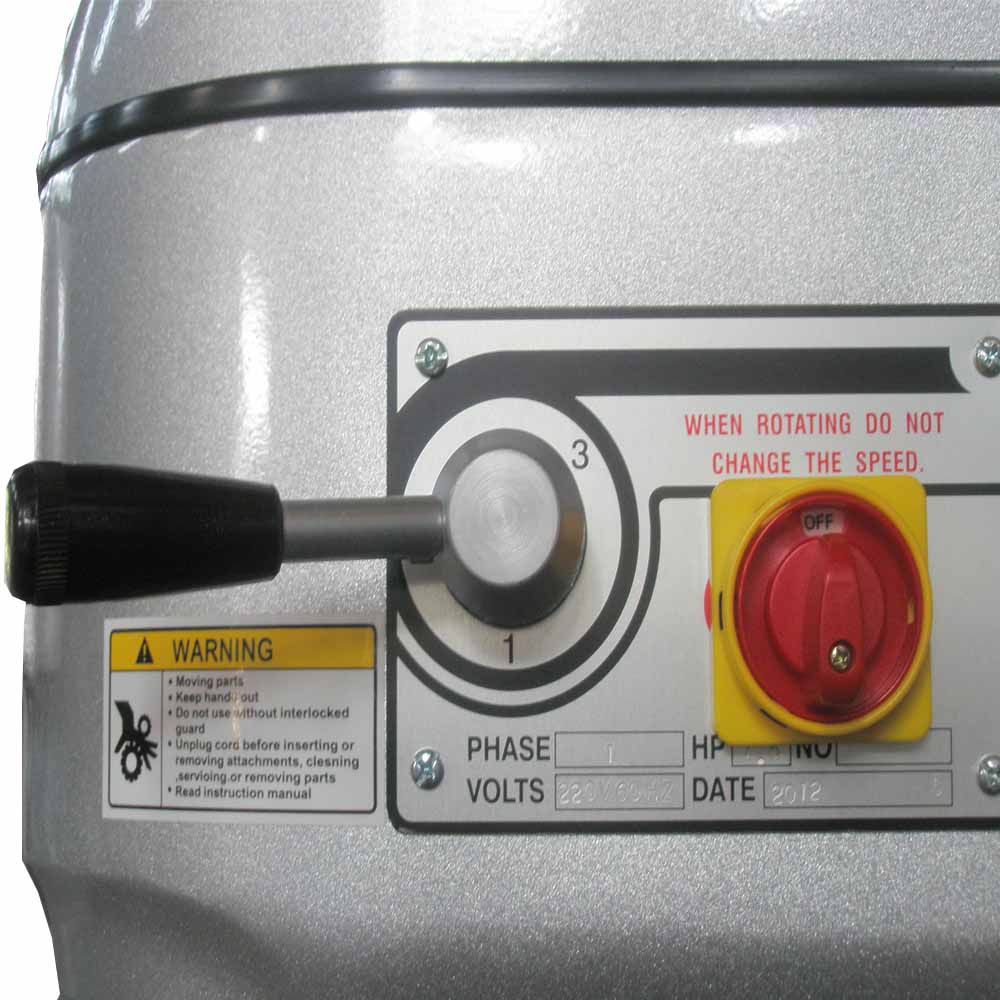

Shift speed must be stop the mixer first.
-
Motor thermal overload protection.
-
All metal and die-cast aluminum body.
-
Transmission is made of harden alloy steel gears and mounted in ball bearings.
- Planetary-mixing action ensures perfect results.
-
Interlocking mechanism prevents mixing until guard is fully closed.
-
Precision-milled, heat-treated steel alloy gear for durability.
-
High polish stainless steel meets food industry sanitation needs.
Instruction
Dough mixing - https://youtu.be/Buvj8R37iGs
Our Certificates
Other planetary dough mixer models are as follows:
| Model No. | Bowl Capacity | Power | Weight |
| SH-08 | 8 Liter | 0.33 HP | 34 Kg |
| AS-10 | 10 Liter | 0.33 HP | 38 Kg |
| AV-01 | 10 Liter | 0.33 HP | 38 Kg |
| SH-10 | 10 Liter | 0.33 HP | 65 Kg |
| AS-20 | 20 Liter | 0.5 HP | 86 Kg |
| AV-02 | 20 Liter | 0.5 HP | 90 Kg |
| HUB-20 | 20 Liter | 0.75 HP | 93 Kg |
| SH-20 | 20 Liter | 0.5 HP | 90 Kg |
| AS-30 | 30 Liter | 1 HP | 134 Kg |
| HUB-30 | 30 Liter | 1 HP | 185 Kg |
| SH-30 | 30 Liter | 1 HP | 160 Kg |
| AS-40 | 40 Liter | 1.5 HP | 149 Kg |
| HUB-40 | 40 Liter | 1.5 HP | 210 Kg |
| AS-50 | 50 Liter | 2 HP | 181 Kg |
| HUB-50 | 50 Liter | 2 HP | 210 Kg |
| SH-303 | 60 Liter | 3 HP | 330 Kg |
| V-60 | 60 Liter | 3 HP | 368 Kg |
| HD-60 | 80 Liter | 3 HP | 397 Kg |
| SH-606 | 80 Liter | 3.25 HP | 385 Kg |
| V-80 | 80 Liter | 4 HP | 400 Kg |
| M-140W | 140 Liter | 6.5 HP | 1,000 Kg |
Pizza machines are us followers:
Model No. |
Type |
Voltage |
Dimension |
Place of origin |
SH-519 |
Conveyor Oven |
220V |
1,610 x 560 x 570 mm |
100% made in Taiwan |
SH-502 |
Dough Rounder |
110V |
730 x 670 x 520 mm |
100% made in Taiwan |
SH-336 |
Dough Divider |
110V - 240V |
410 x 510 x 1,310 mm |
100% made in Taiwan |
S-80 |
Spiral Mixer |
220V - 415V |
1,000 x 590 x 1,080 mm |
100% made in Taiwan |
SH-500 |
Pizza Dough Sheeter |
115V - 240V |
830 x 700 x 830 mm |
100% made in Taiwan |
Q & A
1. Dough hook material? Ans: Aluminum alloy
2. Whip material? Ans: Stainless Steel
3. Flat Beater/Paddle material? Ans: Aluminum alloy
4. Stir bowl material? Ans: All stainless steel.
5. Machine material? Ans: Cast iron.
6. Voltage? Ans: Single phase for 220V.
7. Safety gear? Ans: Safety guard on the stainless steel bowl, Micro switch of safety guard, Micro switch for lifting and declining the stainless steel bowl, ON/OFF push buttons, Motor thermal overload protection, and buttons which comply with Electrical safety standards.
8. Warranty period? Ans: 1 year for all the machine components for the breakdown of the normal use of contract equipment (non-human factor damage).
9. Certificates? Ans: ETL & NSF model is available.
10. Color customize? Ans: Standard colors are white and silver. We also provide customization service.
11. Lead time? Ans: 15-20 days after order confirmation and payment receipt, it depends on our further notice.
12. Payment term? Ans: (T/T), Paypal, Western Union, Moneygram, Alipay, etc.
