ATLAS STAR

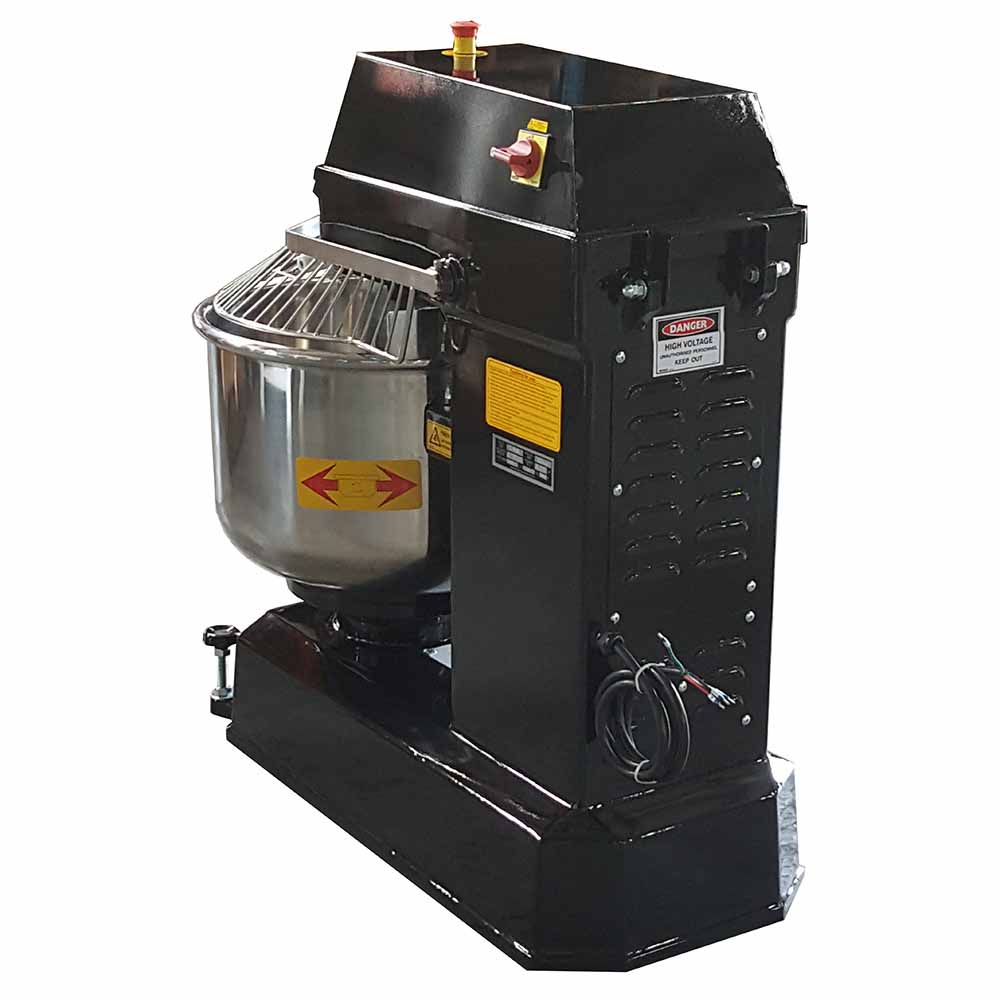

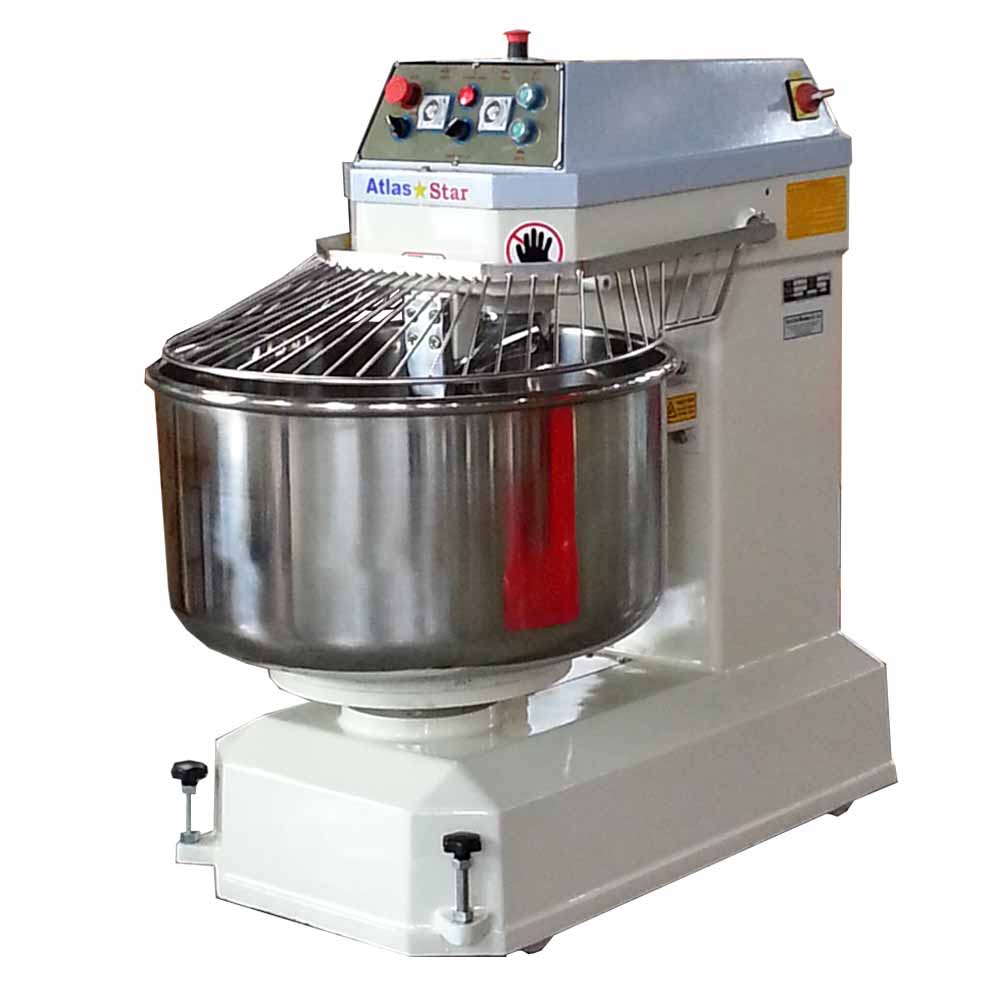

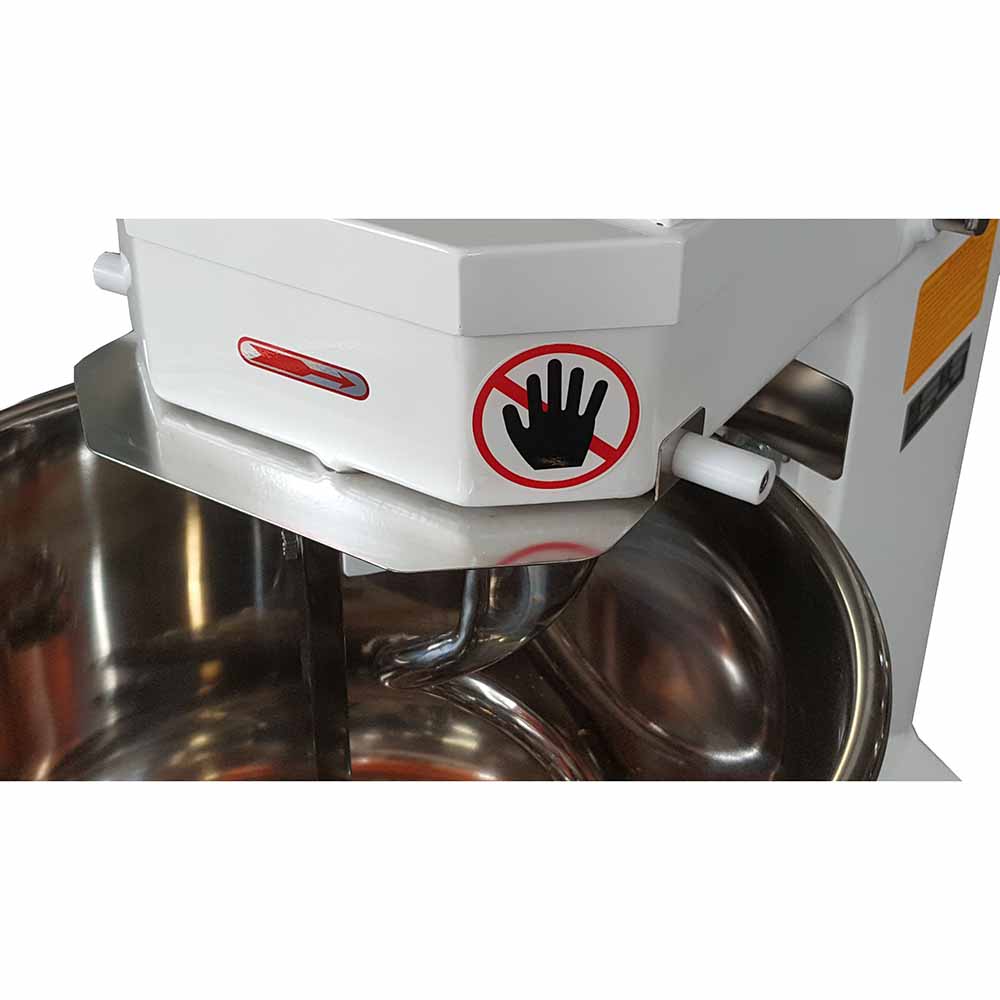

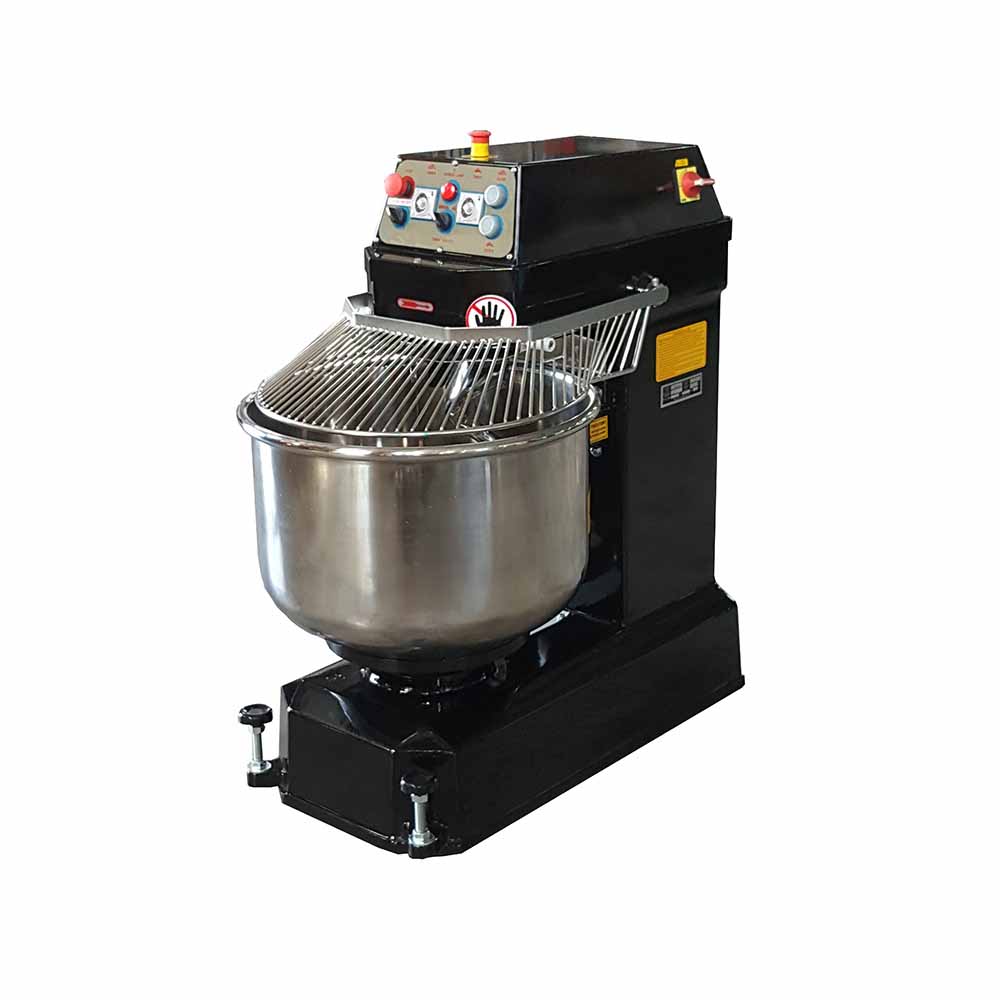

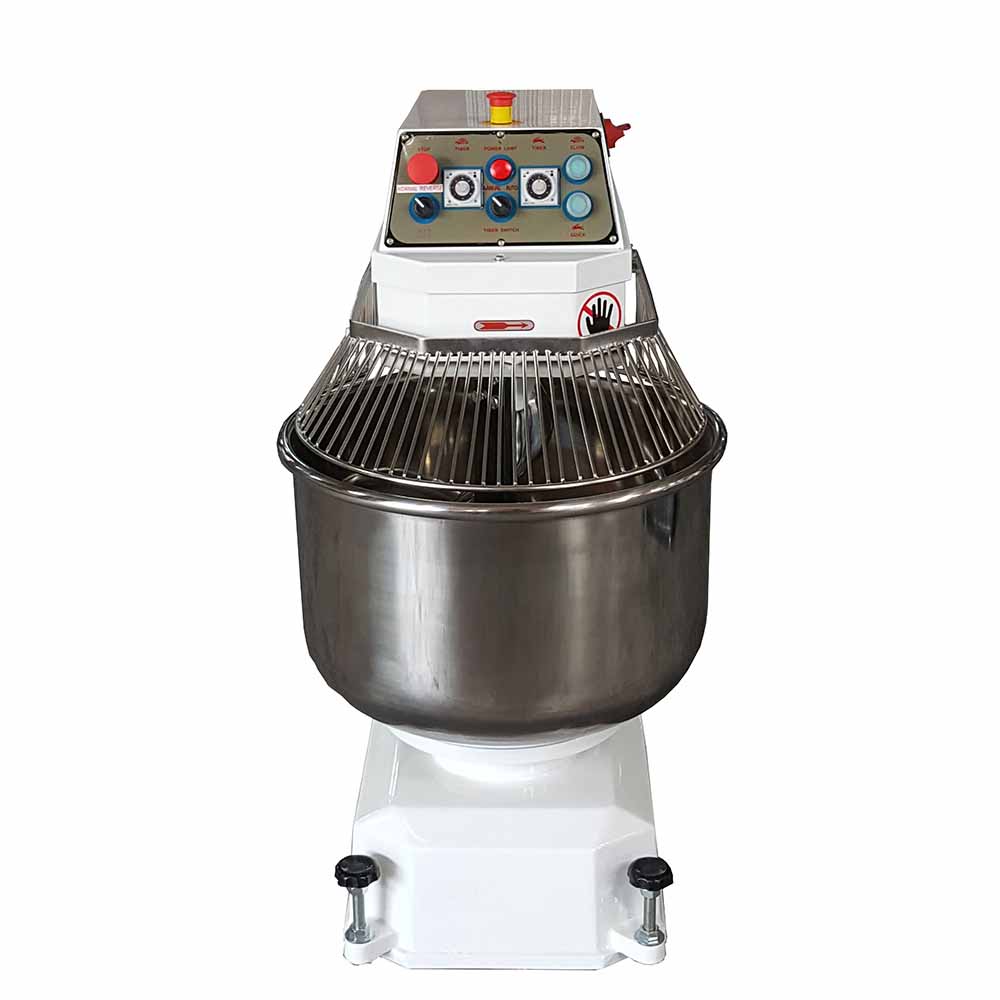

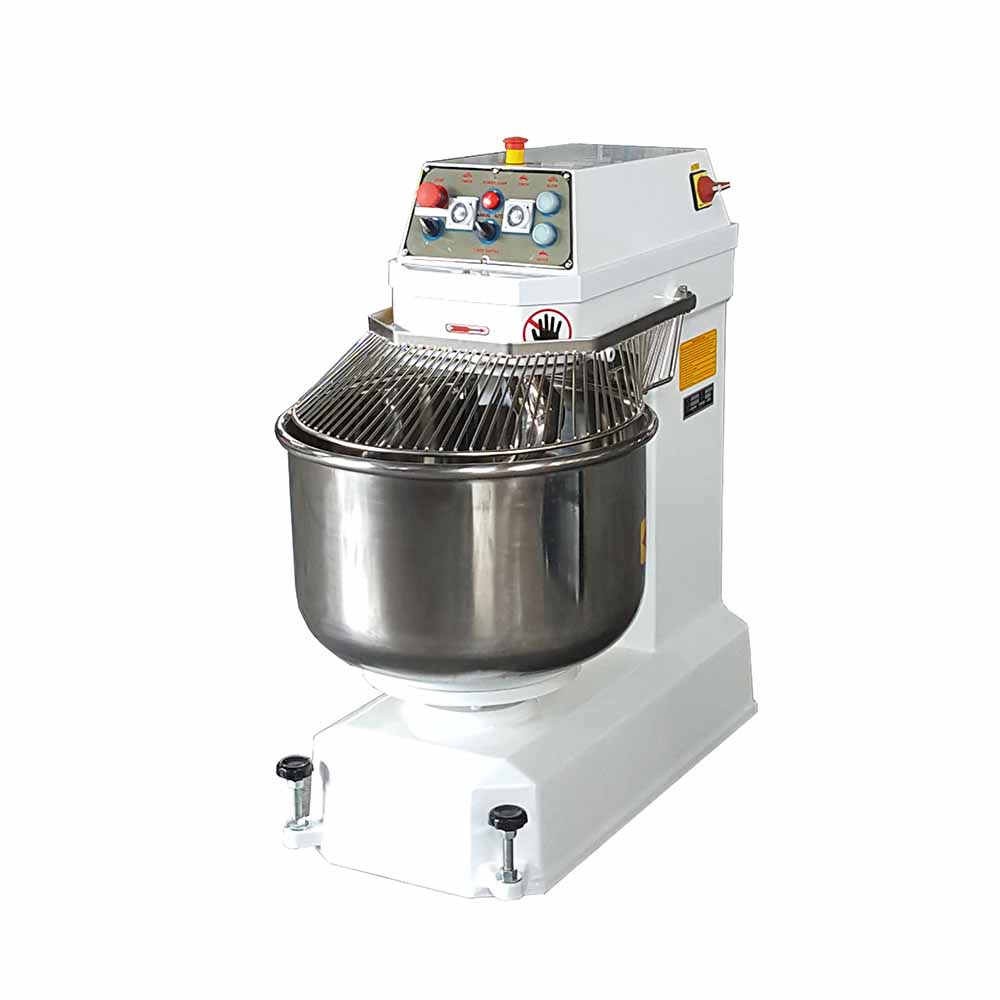

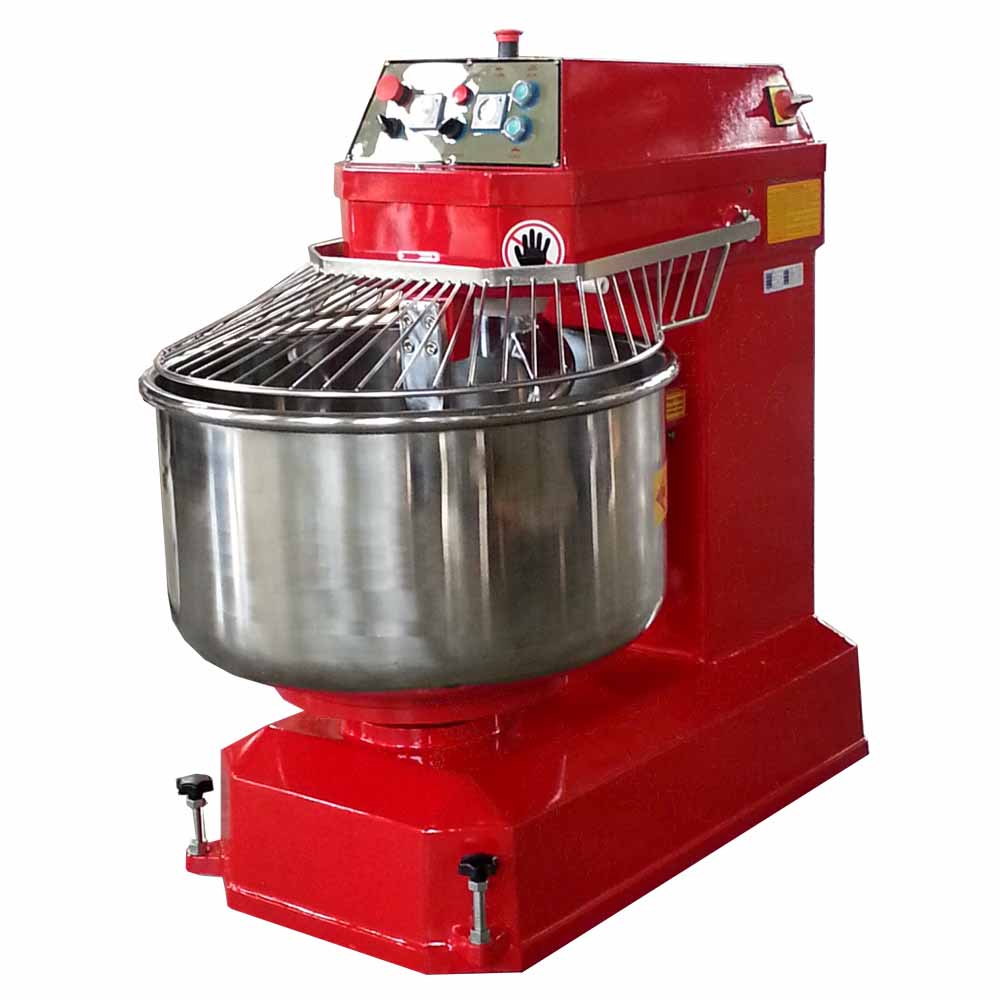

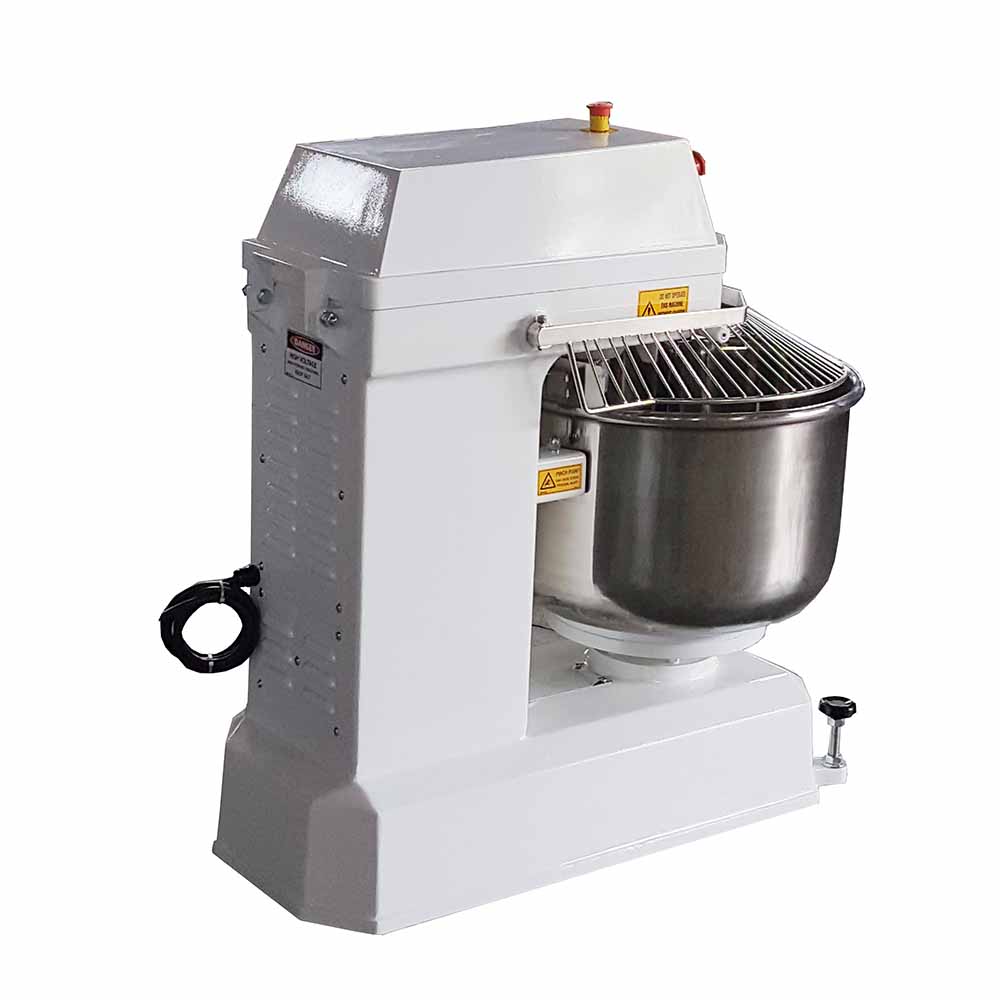

25 kg dry-flour Spiral Mixer Dough Kneader (Taiwan Made)

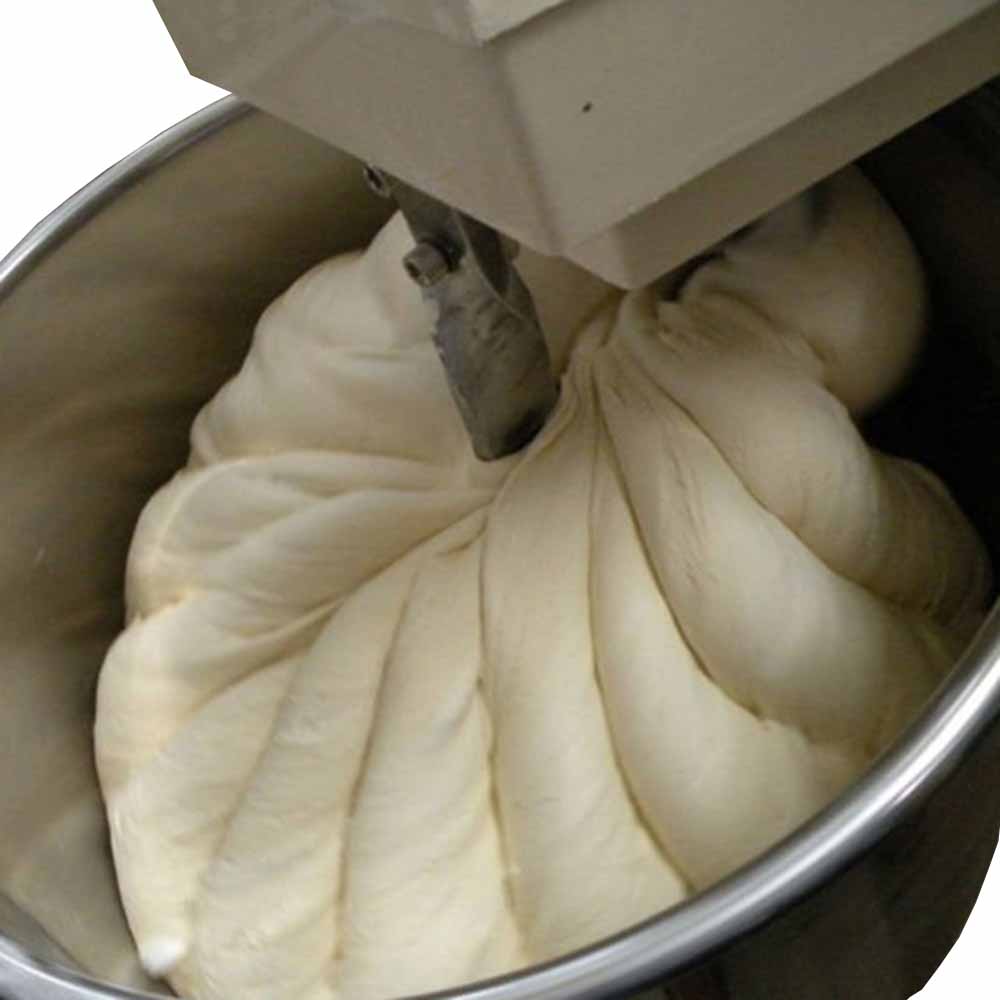

Strong enough for bagels, gentle enough for artisan dough, Taiwan made Stationary Bowl Spiral Mixers are available in a wide range of sizes, and can mix from 20 and 440 lbs. of flour. Coordinated 2-Speed spiral and bowl rotation gives maximum control of ingredient blending, dough development and better end product.



»Specifications

Model Number	S-80
Bowl Capacity	74 Qt. (70 Liter)
Flour Capacity	55 lbs (25 kg)
Dough Capacity	88 lbs (40 kg)
Transmission Type	Belt Driven
Speeds	2 Speed Spiral and Bowl Drive
Timer	2 Timers with Auto Changeover
Spiral Arm Motor	5 HP
Bowl Motor	0.5 HP
Voltage	3 phase for 220V-415V
N.W.	827 lbs (375 kg)
Dimension	39” x 23” x 43” (1,000 x 590 x 1,080 mm)
Accessory	1 x Stainless Steel Bowl 1 x Stainless Steel Spiral Arm 1 x Stainless Steel Breaker Bar 1 x Stainless Steel Guard 4 x Rubber Feet Pad 1 x 30-40 ml Lubricant
Certification	CE Approval
Country of Origin	100% made in Taiwan



»Video of Spiral Dough Mixer - https://youtu.be/yClK1f76oUc



»Other models conveyor belt are as follows:

Model No.	Flour	Power(Arm/Bowl)	Weight
S-06	6 Kg	1 & 0.5 HP	110 Kg
S-40	15 Kg	2.5 & 0.5 HP	190 Kg
S-80	25 kg	5 & 0.5 HP	375 Kg
S-100	38 kg	5 & 0.5 HP	395 Kg
S-150	50 kg	6 & 0.75 HP	450 Kg
S-200	75 kg	7.5 & 0.75 HP	500 Kg
S-250	100 kg	10 & 2 HP	850 Kg
S-300	125 kg	12 & 3 HP	920 Kg
S-350	150 kg	15 & 3 HP	950 Kg
S-400	175 kg	15 & 3 HP	1,100 Kg
S-450	200 kg	16 & 3 HP	1,200 Kg





»Video of Operating to Spiral Dough Mixer  - https://youtu.be/Yang8ski26I
