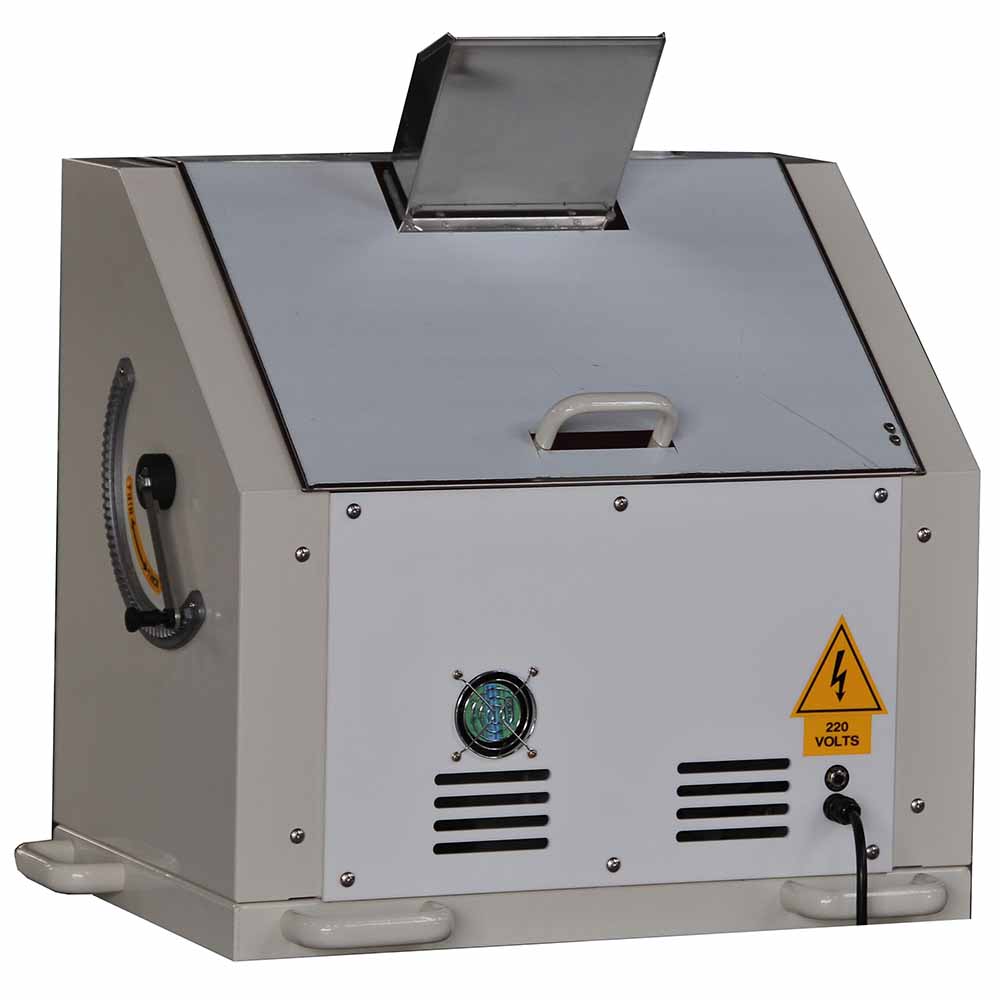

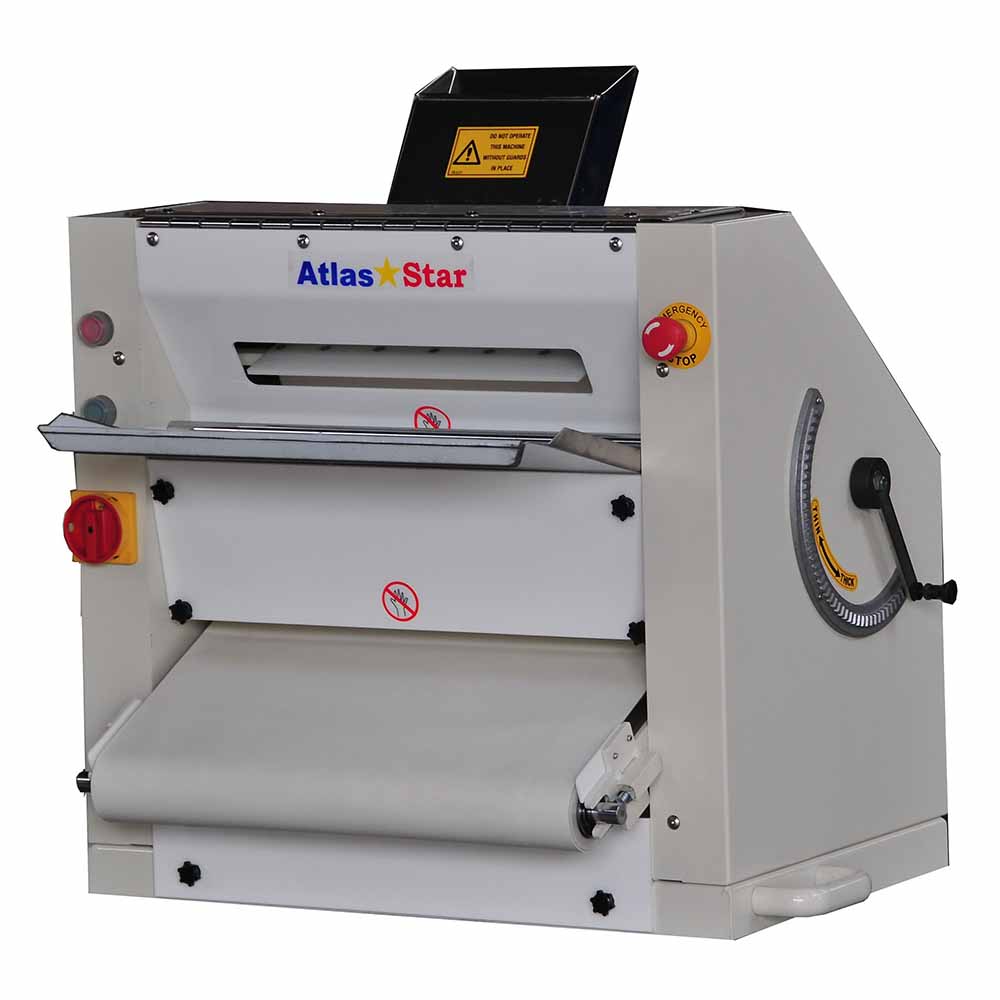

Pizza Dough Sheeter / Roller (Taiwan Made)
The Heavy Duty Pizza Dough Sheeter / Roller is on efficient two stage machine featuring a front infeed and discharge. Ergonomic design makes it easy and simple to operate.

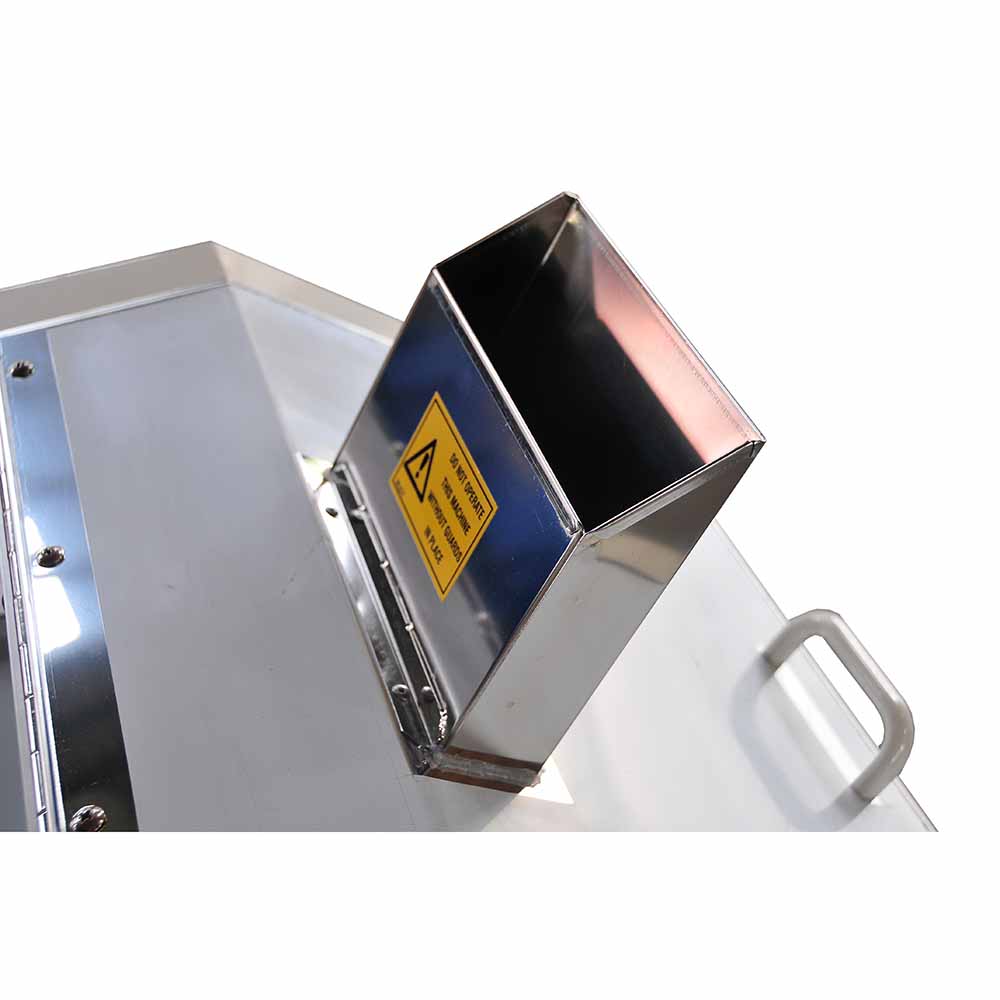

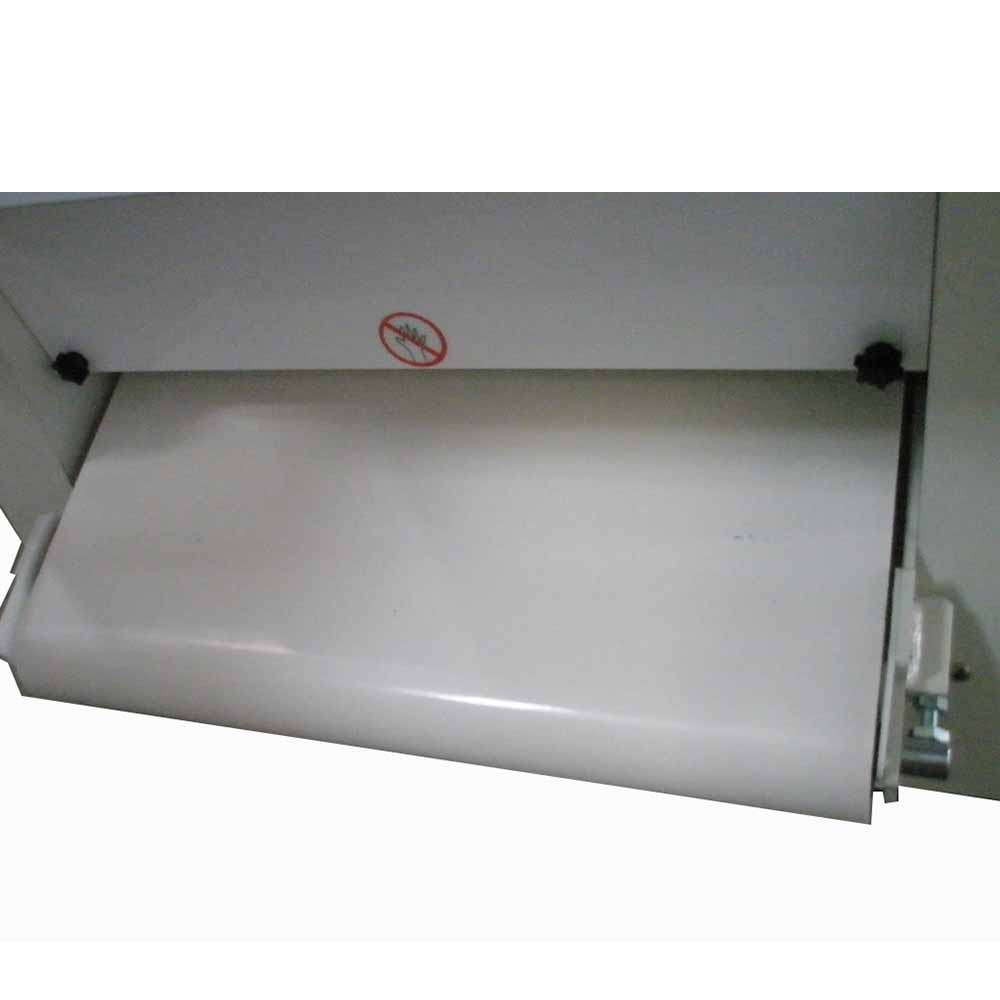

Pizza and pie shells are made easily with this compact, counter top design. The floured dough ball is dropped into the top hopper, then the sheeted dough piece is manually fed through the second set of rollers.
Specifications

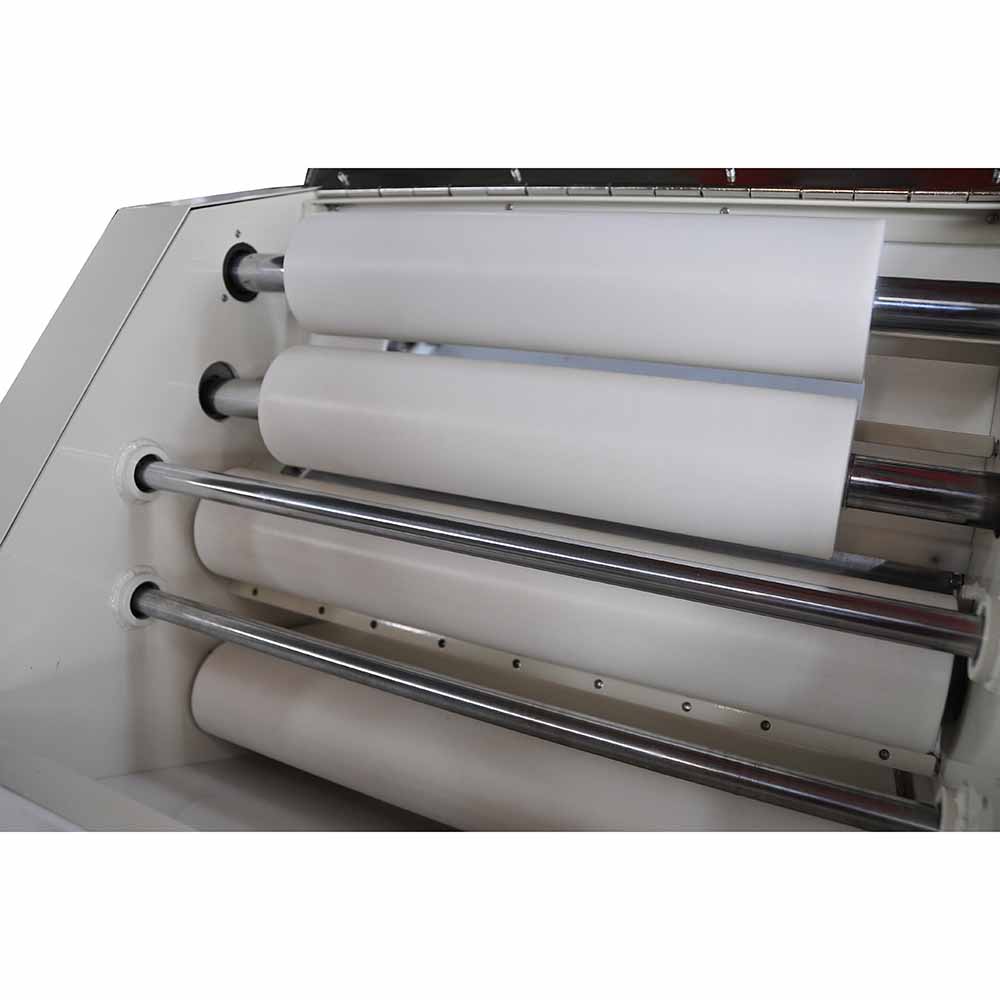

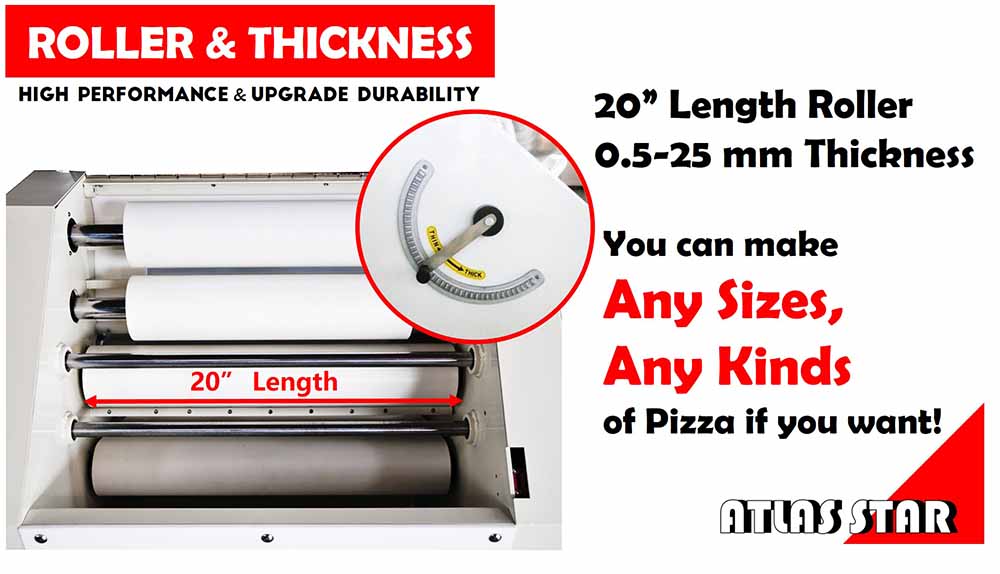

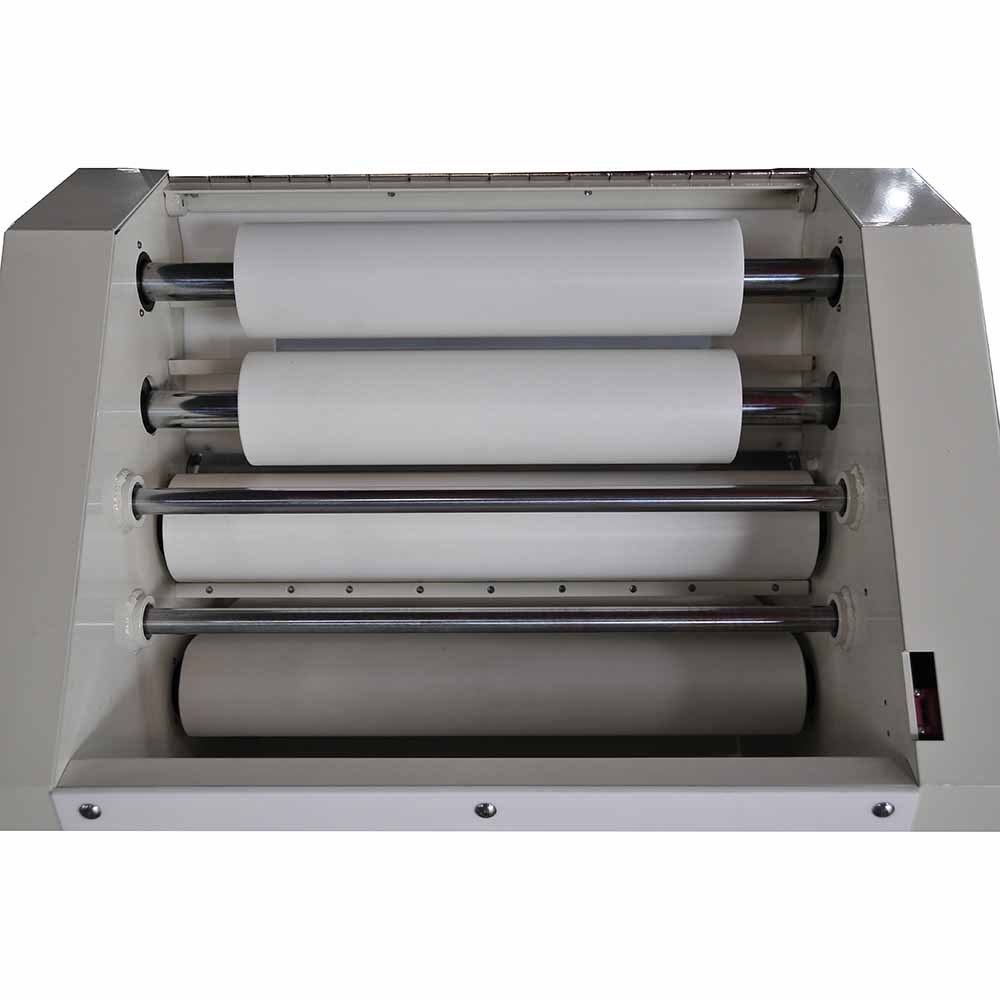

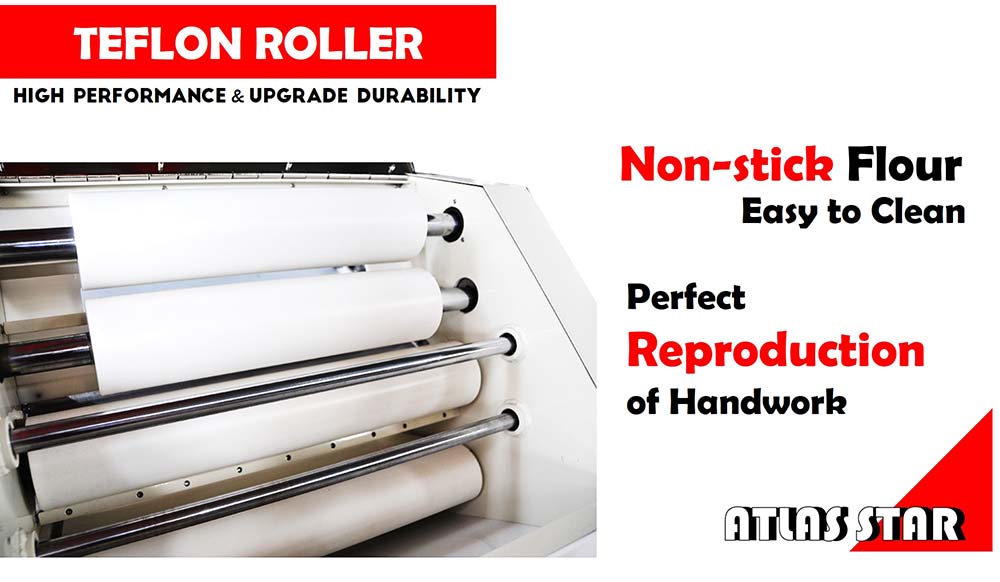

| Rollers | 3.5" (9 cm) Dia. by 20" (50.8 cm) Length |

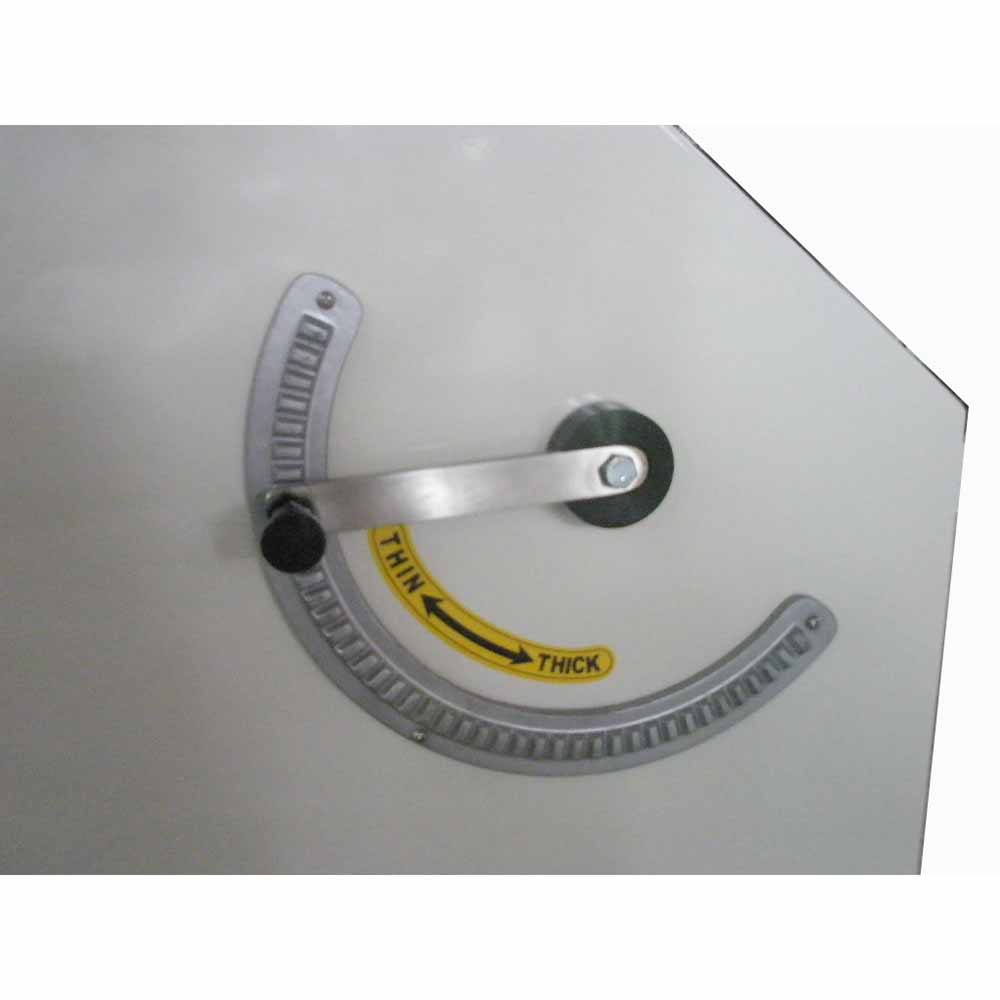

| Sheet Thickness | 0.04" ~ 0.08" (1 ~ 20 mm) |
| Output | 600 pcs per hour |
| Scrapers | Synthetic, Spring Loaded, Removable |
| Bearings | Seaked Bearings, Pemanently Lubricated |
| Voltage |

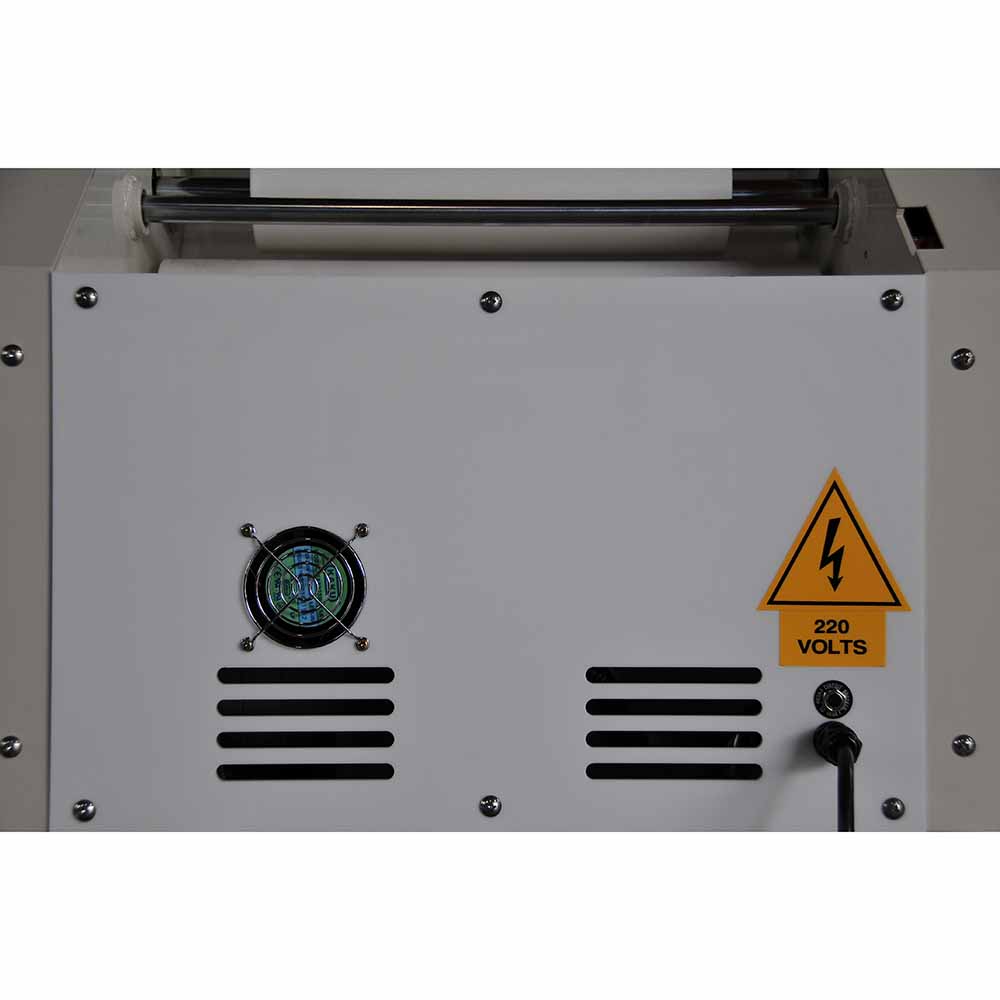

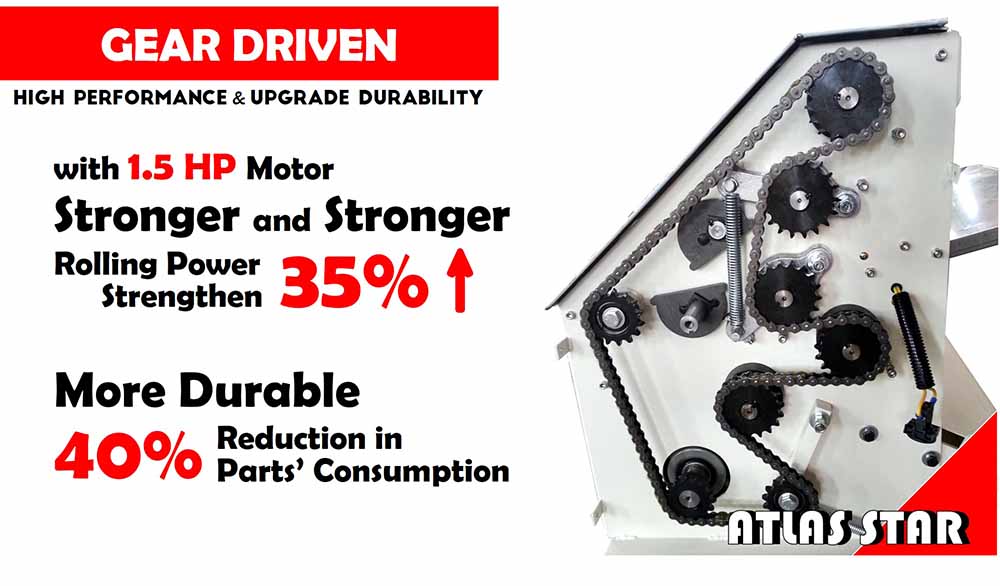

Heavy-duty 1.5 HP Maintenance Free, Single Phase 110V - 115V or 220V - 240V |
| Material | Stainless Steel & Iron Plate |
| Base | 2" (5 cm) Adjustable Horizontal Level Foot Pad |
| Dimensions | 37" x 28" x 37" (830 x 700 x 830 mm) |
| N. W. | 298 lbs (135 Kgs) |
| G. W. | 386 lbs (175 Kgs) |
| Certification | ETL Certificate |
| Warranty | 1-year Full Parts Warranty |
| Country of Origin | 100% made in Taiwan |
Instruction
Pizza dough sheeter - https://youtu.be/q1oS2jlAfhA
Other models dough sheeter / roller are as follows:
| Model No. | Max. thickness | Power | Weight |
| ➤ SH-500 | 20 mm | 1.5 HP | 135 Kg |
| ST-450 | 40 mm | 0.5 HP | 120 Kg |
| ST-520 | 40 mm | 0.5 HP | 120 Kg |
| S-450 | 40 mm | 0.5 HP | 155 Kg |
| S-520 | 40 mm | 0.5 HP | 160 Kg |
| S-650 | 40 mm | 1 HP | 200 Kg |
| SL-520 | 40 mm | 1 HP | 210 Kg |
| SL-650 | 40 mm | 1 HP | 210 Kg |
